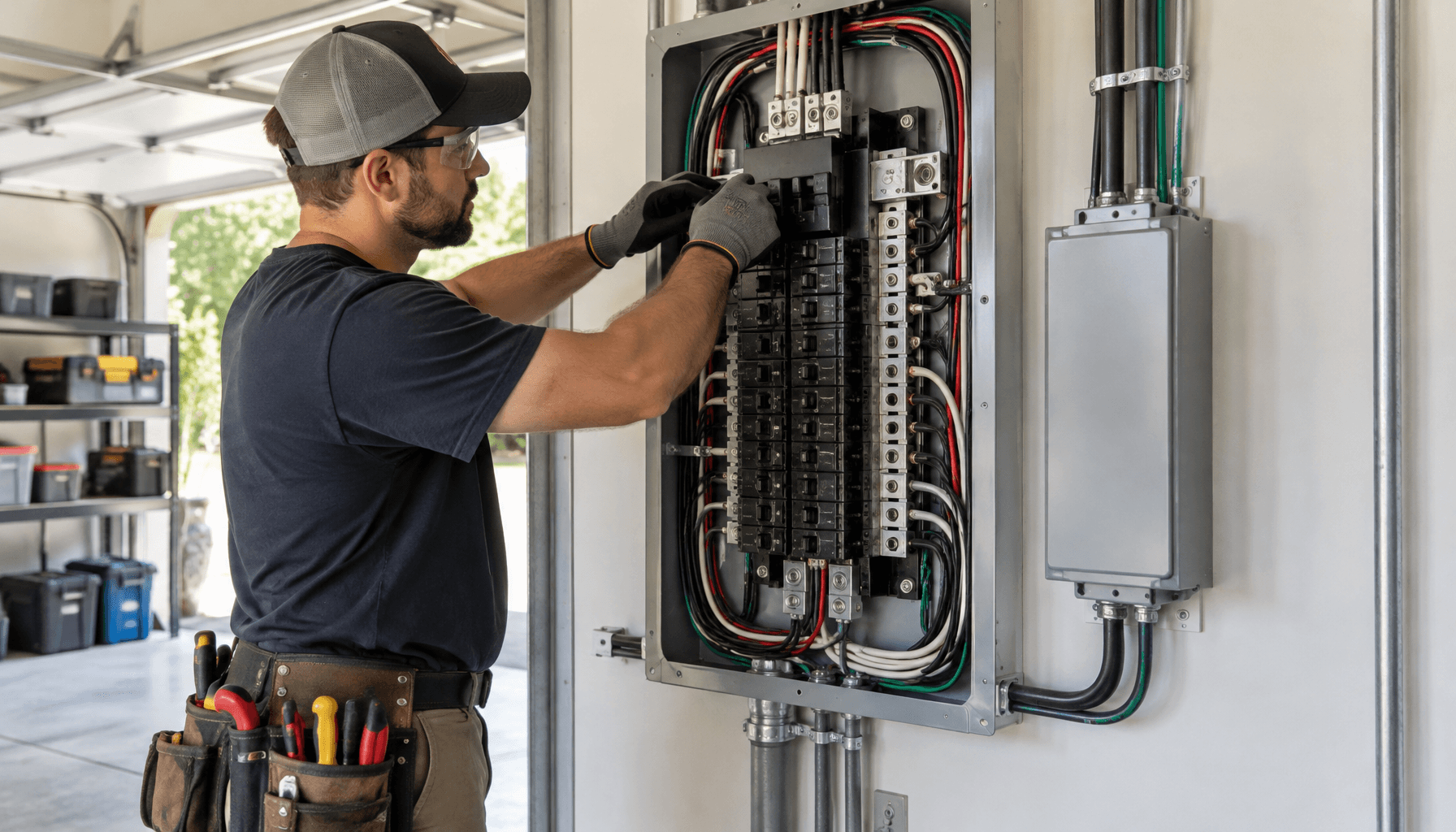

Service Panel Modernization: 200A Upgrades, Surge Protection, and NEC 2023 Compliance

The Core Problem & Regulatory Context

Upgrading to a 200-amp service panel in Phoenix isn't just a boost. It's a necessity. With increasing electrical demands from AC units and electric vehicle (EV) chargers, outdated panels can't cope. The National Electrical Code (NEC) 2023 sets rigorous standards. Article 230.85 mandates outdoor emergency disconnects, critical for first responders. Non-compliance isn't an option. Safety precedes speed.

The International Residential Code (IRC) and International Building Code (IBC) enforce strict structural compliances. Arizona's Title 32 Chapter 10 ensures contractors hold valid licenses. Caliche soils shift under high heat, impacting foundation stability. Panels must withstand extreme conditions: 115°F heat, UV index 11+, and monsoonal winds.

Costs vary, but expect $2,500 to $4,500 for a panel upgrade. Verify ROC bonds first. Cutting corners costs. Ensure surge protection: Type 1/Type 2 Surge Protective Devices (SPDs) are essential per NEC 2023. Coordination with utilities like APS and SRP is vital. Safety is non-negotiable.

Workflow Architecture & Execution Topology

┌────────────────┐
│   Start        │
└──────┬─────────┘
       │
       ▼
┌───────────────┐
│  Assess Needs │
│   (Load Calc) │
└──────┬────────┘
       │
       ▼
┌───────────────┐
│   Verify ROC  │
│  Licenses     │
└──────┬────────┘
       │
       ▼
┌───────────────┐
│   Plan Utility│
│   Coordination│
└──────┬────────┘
       │
       ▼
┌───────────────┐
│  Install 200A │
│  Panel & SPD  │
└──────┬────────┘
       │
       ▼
┌───────────────┐
│  Compliance & │
│  Final Audit  │
└──────┬────────┘
       │
       ▼
┌────────────────┐
│     End        │
└────────────────┘

Methodology Benchmark: Legacy Approaches vs. Modern Standards

Essential Takeaways & Axioms for Property Owners

• Check Credentials: Verify contractor licenses with AZ ROC.
• Demand Compliance: Ensure installations meet NEC 2023 standards.
• Plan for Safety: Install outdoor disconnects for emergency access.
• Insist on Audits: Require a final compliance audit post-installation.
